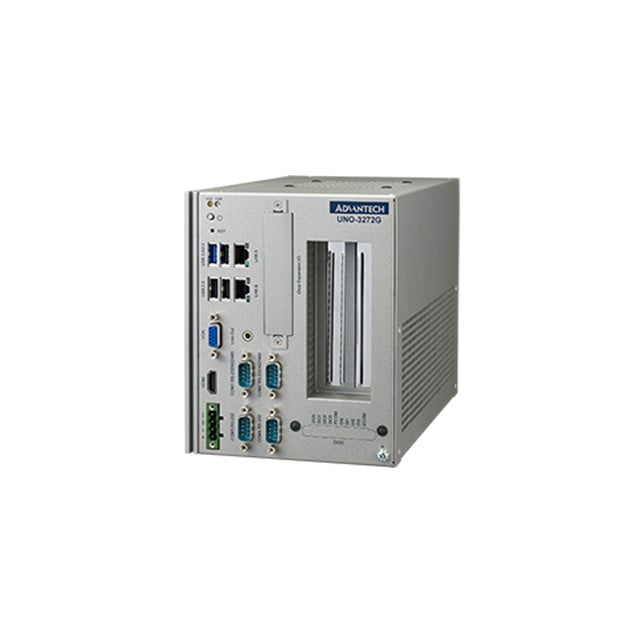

Advantech Intel® Celeron J1900 Automation Computer with 2 PCI(e) Expansion Slots, 2 x GbE, 1 x mPCIe, HDMI, VGA (UNO-3272G-J021AE)
Deskripsi
SPESIFICATION
| Category | Attribute | Value |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI |
| Hardware | CPU | Intel® Celeron J1900 2.0GHz Quad-Core |
| Hardware | Graphics Engine | Intel® HD Graphics |
| Hardware | Memory | 1 x SO-DIMM with 4 GB DDR3L 1333 MHz, 1 x DDR3L SO-DIMM Slot |
| Hardware | OS Support | Microsoft® Windows 10 2019 LTSC, WES7, Linux |
| Hardware | Power Input | 10~36 VAC |
| Hardware | Storage | 1 x M.2 B key, 1 x 2.5″ SSD/HDD Bay |
| I/O Interface | Audio | Line-Out |
| I/O Interface | Displays | 1 x VGA, 1 x HDMI |
| I/O Interface | Expansion | 1 x Full-size mPCIe Slot, 2 x PCIe x1 |
| I/O Interface | LAN Ports | 2 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x 4-Pin Terminal Block |
| I/O Interface | Serial Ports | 2 x RS-232/422/485, 2 x RS-232 |
| I/O Interface | USB Ports | 1 x USB 3.0, 3 x USB 2.0 |
| Environment | Ingress Protection | IP20 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Relative Humidity | 10~95% RH (non-condensing) |
| Environment | Shock Protection | 50 G, half sine |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Vibration Protection | 3 Grms, random |
| Mechanical | Dimension (W x H x D) | 145 x 238 x 177 mm |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Weight (Net) | 2.9 kg |
Informasi Tambahan
| Brand |
Advantech |
|---|
