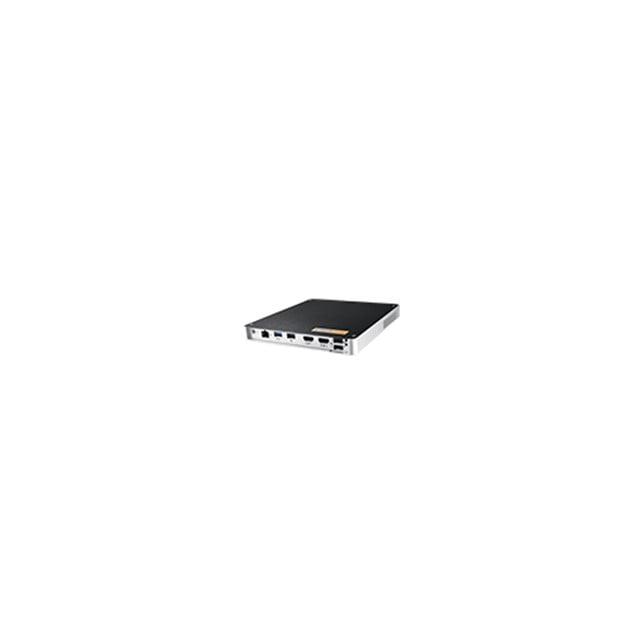

Advantech Intel® Celeron® J1900 Quad-Core Ultra-slim Fanless Digital Signage Player (DS-066GB-U0A1E)

SKU: DS-066GB-U0A1E Kategori: Advantech, Digital Signage Players, Embedded Box Computers, IoT / Industrial Tag: advantech

Deskripsi

Category	Attribute	Value
Display	Graphic Engine	Intel HD Graphic
Display	Output	HDMI x 2
Display	Resolution	1920 x 1080 @ 60Hz
I/O	Audio	1 x Line-out, 1 x Mic in, support Jack Sense
I/O	HDMI	2
I/O	LAN	1 (RJ-45)
I/O	LED Indicators	1 x Power, 1 x HDD Access
I/O	M.2	1 x M.2 1630/2230 E-Key for wireless module
I/O	PSW	1 x Power on/off button
I/O	Serial port	1 x RS-232
I/O	USB2.0	3
I/O	USB3.0	1
Memory	Max. Capacity	8 GB, 4 GB per SO-DIMM
Memory	Socket	2 x 204 pin SODIMM
Memory	Technology	DDR3L 1333 MHz
Processor	BIOS	AMI uEFI 64Mbit
Processor	Chipset	Integrated in SOC
Processor	CPU	Intel® Celeron™ Processor J1900 Quad Core 2.0 GHz SoC
Storage	SATA	1 x 2.5-inch SATA III HDD/SSD (only support 7mm height)
Environment	Operating Temperature	0 ~ 40° C (32 ~ 104° F) (w / HDD); 0 ~ 50° C (32 ~ 122° F) (w / SSD)
Power	Input Voltage	19 V DC-in (ATX/AT mode)
Power	Power Management	ACPI 3.0
Ethernet	Connector	RJ45
Ethernet	Controller	Intel i211AT
Ethernet	Interface	Gigabit LAN Controller
Environment	Relative Humidity	95% @ 40° C (non-condensing)
Watchdog Timer	Output	Interrupt, system reset
Software Development Kit	Linux	by Project support
Software Development Kit	Operating System	Supports Win7 , Win10 x64
Certification	EMC	CE, FCC Class B, CCC, BSMI
Certification	Safety Certifications	UL, CB, CCC, BSMI
Physical Characteristics	Dimensions(W x D x H)	180 x 190 x 19 mm
Physical Characteristics	Mounting	VESA/Desk/Wall/Din Rail
Physical Characteristics	Weight	0.87 kg (1.92 lb)
Thermal Solution	Thermal Solution	FANLESS
