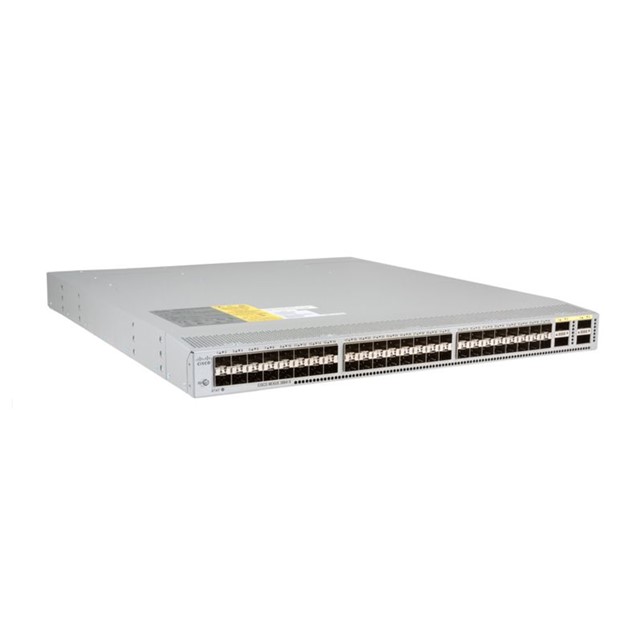

Name: Cisco Nexus 3064-X, 48 SFP+ and 4 QSFP+ ports, with enhanced scale, low latency (N3K-C3064PQ-10GX)
SKU: N3K-C3064PQ-10GX
Availability: InStock

Cisco Nexus 3064-X, 48 SFP+ and 4 QSFP+ ports, with enhanced scale, low latency (N3K-C3064PQ-10GX)

Rp280.419.300

Description	Specification
Physical	● 1RU fixed form factor ● Cisco Nexus 3064-X: 64 10 Gigabit Ethernet ports (48 SFP+ and 4 QSFP+) ◦ 48 SFP ports support 1 and 10 Gigabit Ethernet ◦ 4 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each ● 2 redundant power supplies ● 1 fan tray with redundant fans ● 1 I/O module with management, console, and USB flash memory ports
Performance	● 1.28-Tbps switching capacity ● Forwarding rate of 950 mpps ● Line-rate traffic throughput (both Layer 2 and 3) on all ports ● Configurable Maximum Transmission Units (MTUs) of up to 9216 bytes (jumbo frames)
Hardware tables and scalability	MAC addresses	128,000
	Number of VLANS	4096
	Spanning-tree instances	● Rapid Spanning Tree Protocol (RSTP): 512 ● Multiple Spanning Tree (MST) Protocol: 64
	ACL entries	● 2000 ingress ● 1000 egress
	Routing table	● 16,000 prefixes and 16,000 host entries ^* ● 8000 multicast routes ^*
	Number of EtherChannels	64 (with vPC)
	Number of ports per EtherChannel	32
	Buffers	9 MB shared
	Boot flash memory	2 GB
Power	Number of power supplies	2 ● Cisco Nexus 3064-X: Redundant for AC and DC power ● Cisco 3064-T and 3064-32T: Redundant for AC power
	Power supply types	● AC (forward and reversed airflow) ● DC (forward and reversed airflow)
	Typical operating power	● Cisco Nexus 3064-X ◦ 143 watts (W; 64p with Twinax at 100% load; 2 power supply units [PSUs]) ◦ 177W (64p with SR optics at 100% load; 2 PSUs) ● Cisco Nexus 3064-T ◦ 362W (48p with 3m cables; 4 SR4 at 100% load)
	Maximum power	● Cisco Nexus 3064-X: 199W ● Cisco Nexus 3064-T
	AC PSUs ● Input voltage ● Frequency ● Efficiency	● 100 to 240 VAC ● 50 to 60 Hz ● 89 to 91% at 220V
	DC PSUs ● Input voltage ● Maximum current ● Efficiency	● -40 to -72 VDC ● 33A ● 85 to 88%
	Typical heat dissipation	● Cisco Nexus 3064-X ◦ 488 BTU/hr (64p with Twinax at 100% load; 2 PSUs) ◦ 605 BTU/hr (64p with SR optics at 100% load; 2 PSUs) ● Cisco Nexus 3064-T ◦ 1235 BTU/hr (48p with 3m cables; 4 SR4 at 100% load)
	Maximum heat dissipation	● Cisco Nexus 3064-X: 683 BTU/hr ● Cisco Nexus 3064-T: 1553 BTU/hr
Cooling	Forward and reversed airflow schemes: ● Forward airflow: Port-side exhaust (air enters through fan-tray and power supplies and exits through ports) ● Reversed airflow: Port-side intake (air enters through ports and exits through fan-tray and power supplies) Single fan tray with redundant fans Hot swappable (must swap within 1 min)
Sound	Measured sound power (maximum) ● Fan speed: 40% duty cycle ● Fan speed: 60% duty cycle ● Fan speed: 100% duty cycle		● 59.7 dBA ● 66.4 dBA ● 71.0 dBA

Cisco Nexus 3064-X, 48 SFP+ and 4 QSFP+ ports, with enhanced scale, low latency (N3K-C3064PQ-10GX)

Cisco Nexus 3064-X, 3064-T, and 3064-32T Datasheet
